This chapter describes the IDE's wizards.
Wizards guide you through a sequence of tasks, such as
creating a new project or converting an existing non-IDE
project to a QNX C/C++ application or library project.
Wizards aren't directly connected to any perspective. You
can access all the project creation wizards from the main menu by selecting
File-->New-->Other....
In the New Project dialog, the wizards are categorized
according to the nature of the project. If you expand
C, you'll see all projects that
have a C nature; expand
QNX, and you'll see all the projects with a QNX
nature:
Notice the overlap: the QNX C Project wizard appears in
both C and QNX.
Besides the nature-specific wizards, the IDE also has
"simple" wizards that deal with the very basic
elements of projects: Project, Folder, and
File. These elements have no natures associated
with them. You can access these wizards by selecting
File-->New-->Other...-->Simple.
 |
Although a project may seem to be nothing other than a
directory in your workspace, the IDE attaches special
meaning to a project -- it won't automatically
recognize as a project any directory you happen to create in
your workspace.
But once you've created a project in the IDE, you can bring
new folders and files into your project folder, even if they
were created outside the IDE (e.g. using Windows Explorer).
To have the IDE recognize such folders and files:
 |
In the Navigator view, right-click the navigator pane and
select Refresh. |
|
You use the New Project wizard to create a C or C++
project, which can be one of these varieties:
- QNX C Project (application)
QNX C++ Project (application)
- A C or C++ application for multiple target platforms. It
supports the QNX-specific project structure using
common.mk files to perform a QNX recursive
make.
|
If you open a common.mk file in the editor,
you can toggle the display to reveal hidden internal code by
clicking the expand icon in the editor:
|
- QNX C Project (library)
QNX C++ Project (library)
- A library that other projects can reference. In most
other respects, library projects resemble QNX C/C++ application
Projects.
- Standard Make C Project
Standard Make C++ Project
- A basic C or C++ project that uses a standard
Makefile and GNU make to build the
source files. You don't get the added functionality of the
QNX build organization and the common.mk
file, but these standard projects adapt well to your
existing code that you wish to bring into the IDE. (For more about makefiles and the make utility, see the
Conventions for Makefiles and Directories appendix in the
Programmer's Guide.)
As a rule, the IDE provides UI elements to control most of the
build properties of QNX projects, but not of Standard Make
projects (unless you consider a makefile a "UI
element").
To create a C/C++ project :
- From the menu, select
File-->New-->Project....
- In the left pane, select the project's nature according
to this table:
| If you want to build: |
Select: |
| Standard Make C project |
C |
| QNX C application project |
C or QNX |
| QNX C library project |
C or QNX |
| Standard Make C++ application project |
C++ |
| QNX C++ application project |
C++ or QNX |
| QNX C++ library project |
C++ or QNX |
- In the right pane, select the type of project that you
want (e.g. QNX C Project).
- Click Next.
- Give your project a name.
Even though it allows it, don't use any of the following characters in
your project name (they'll cause problems later): | ! $ ( " )
& ` : ; \ ' * ? [ ] # ~ = % < > { }
- Ensure that Use Default Location is checked.

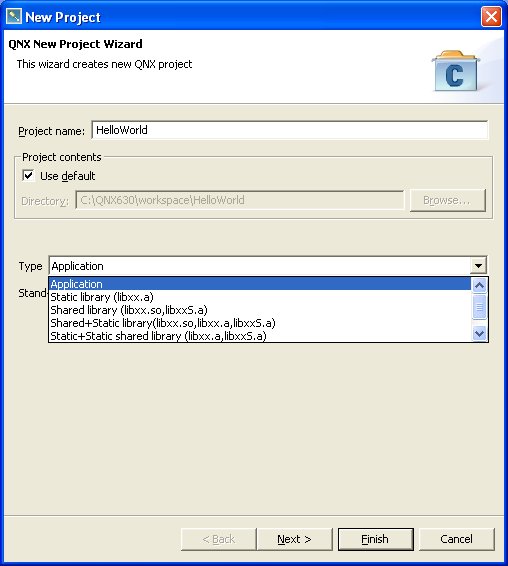

- Select the type (application or library):
If you're building a library, see below.
- Click Next. The wizard displays the appropriate tabs.
- Select each tab and fill in the required information.
The fields for each tab are described in the "Tabs in the New C/C++ Project wizard" section, below.
- Click Finish.
The IDE creates your new project in your workspace.
|
In the C/C++ Development perspective, you can also access
the QNX C/C++ Projects wizards via the New C/C++ Project button:
|
You'll need to choose the type of library you wish to build:
- Static library (libxx.a)
- Combine binary object files (i.e. *.o)
into an archive that will later be directly linked into an
executable.
- Shared library (libxx.so)
- Combine binary objects together and join them so they're
relocatable and can be shared by many processes. Shared
libraries are named using the format
libxx.so.version, where
version is a number with a default of 1. The
libxx.so file will be a symbolic link to the
latest version.
- Static library for shared objects (libxxS.a)
- Same as static library, but using position-independent
code (PIC). Use this if you want a library that will later
be linked into a shared object. The System Builder uses
these types of libraries to create new shared libraries that
contain only the symbols that are absolutely required by a
specific set of programs.
- Shared library without export (xx.dll)
- A shared library without versioning. Generally, you
manually open the library with the dlopen() function
and look up specific functions with the dlsym() function.
Since this type of project doesn't use the QNX recursive
multivariant makefile structure, you'll have to set up your
own makefile.
Here's how to create a simple "Hello World" non-QNX project:
- Open the New Project wizard.
- Select Standard Make C (or C++) Project, then click Next.
- Name your project, then click Finish. The IDE has now
created a project structure.
Even though it allows it, don't use any of the following characters in
your project name (they'll cause problems later): | ! $ ( " )
& ` : ; \ ' * ? [ ] # ~ = % < > { }
- Now you'll create a makefile for your project. In the
Navigator, highlight your project, then click the Create a
File button on the toolbar:
- Name your file "Makefile" and
click Finish. The editor should now open, ready for you to
create your Makefile.
Here's a sample Makefile you can use:
CC:=qcc
hello: hello.c
all: hello
clean:
rm -f hello.o hello
|
Use Tab characters to indent commands inside of
make rules, not spaces. |
- When you're finished editing, save your file
(right-click, then select Save, or click the Save button in
the tool bar).
- Finally, you'll create your "hello world" C
(or C++) source file. Again, open a new file, which might
look something like this when you're done:
#include <stdlib.h>
#include <stdio.h>
int main(int argc, char *argv[]) {
printf("Hello, world!\n");
return EXIT_SUCCESS;
}
Depending on the type of project you choose, the New Project
wizard displays different tabs:
- QNX C or C++ application or library project
- Tabs:
- Build Variants
- Projects
- Make Builder
- Error Parsers
- Options
- Standard Make C or C++ project
- Tabs:
- Projects
- Make Builder
- Error Parsers
- Binary Parser
- Paths and Symbols
The Build Variants tab lets you choose the platforms to compile executables for:
|
By default, all platforms are enabled. You might
want to set your preferences for QNX projects to build only
for the specific target platforms you want. To do this, open
Window-->Preferences-->QNX-->New
Project-->Build Variants.
|
Click the Select All button to enable all of the listed
variants, or the Deselect All button to disable all of the
listed variants.
You can click the Add button to add a new variant under the
currently selected target architecture, or the Delete button
to remove the currently selected variant.
You must choose at least one platform to be the default build variant:
- Select the build variant you want as the default.
- Click the Default button.
The variant's name changes to include "- default" and
a blue exclamation mark is displayed beside it to indicate that it
is now the default build variant.
The Projects tab lets you specify your preferred order of
building:
For example, if you associate myProject with
mySubProject, the IDE builds
mySubProject first when you rebuild all your
projects. If you change mySubProject, the IDE
doesn't automatically rebuild myProject.
The Make Builder tab lets you configure how the IDE handles
make errors, what command to use to build your
project, and when to do a build:
- Build Setting
- If you want the IDE to stop building when it encounters
a make or compile error, check Stop on
Error. Otherwise, check Keep Going On Error.
- Build Command
- If you want the IDE to use the default make
command, check Use Default. If you want to use a
different utility, uncheck Use
Default and enter your own command in the Build Command
field (e.g. C:/myCustomMakeProgram).
- Workbench Build Behavior
- You can specify how you want the IDE to build your
project:
- whenever you save any file in your project
- incremental build (make all)
- full rebuild (make clean all)
The Error Parsers tab lets you specify which build output
parsers (e.g. Intel C/C++ Compiler Error Parser, CDT GNU
Assembler Error Parser, etc.) apply to this project and in
which order. To change the order, simply select an item,
then use the Up or Down buttons to
position the item where you want in the list.
The Options tab lets you specify several attributes for the
project you're building:
- General options
- By default, some project properties (e.g. active
targets) are local -- they're stored in the
.metadata folder in your own workspace. If you
want other developers to share all of your project's
properties, then set Share all project properties
on. The IDE then stores the properties in a
.cdtproject file, which you can save in your
version control system so that others may share the project
file.
- Build Options
- If you want to profile your application and take full
advantage of the QNX Application Profiler, then check
Build with Profiling (see the Profiling an Application
chapter in this guide).
If you want use the QNX Code Coverage tool, then check
Build with Code Coverage (see the Using Code Coverage chapter in this guide).
If you want the IDE to do more dependency checking than it
normally would, then set the Enhanced dependency
checking option on. Note that this will mean slower
builds, so you may want to turn this off in order to improve
build times.
If you're building a Standard Make C/C++ project, then this
tab lets you define which binary parser (e.g. ELF Parser)
should be used to deal with the project's binary objects.
If you're building a Standard Make C/C++ project, then this
tab lets you control how include paths and C/C++ macro
definitions for this particular project are automatically
discovered. Certain features of the IDE (e.g. syntax highlighting,
code assistance, etc.) rely on this information, as do source-code
parsers.
|
At a later time, you can supply this data using the Search
Paths item in project's Properties. |
If you're building a Standard Make C/C++ project, then this tab lets
you control the C/C++ source code indexer. Certain features of the
IDE rely on this information.
You must create a Target System Project for every
target you want to use with the IDE.
To create a new target:
- From the menu, select File-->New-->Project....
- In the left pane, select QNX.
- In the right pane, select QNX Target System Project.
- Click Next. The New QNX Target System Project wizard appears:
- Complete the fields described below:
- Target Name
- Type a descriptive name for your QNX Target System Project.
- Project contents
- Check Use default to store it in your
workspace, or turn this option off and select another
location in the Directory field.
- QNX Connector Selection
- Type the target connection in the Hostname or IP and
Port fields. If you're running the IDE on a QNX Neutrino
machine running qconn, then check Use local QNX
Connector; the IDE automatically fills in the
connection information. (If you wish to connect to a
different target, you may turn Use local QNX
Connector off, and then fill in the fields manually.)
- Target Configuration
- This section is for a future feature.
- Click Finish. Your new QNX Target System
Project appears in the Navigator view. When you create a
launch configuration, the target is listed under the Main
tab in the Target Options pane. Note that you can use the
Add New Target button in the Target Options pane to
open the New Target System Project wizard.
|
You can also reach the New Target System Project wizard
from within the Target Navigator (right-click, then select
Add New Target). |
At various times, you may need to convert non-QNX projects
to QNX projects (i.e. give them a QNX nature). For example,
suppose another developer committed a project to CVS without
the .project and .cdtproject
files. The IDE won't recognize that project as a QNX project
when you check it out from CVS, so you'd have to convert it.
Or, you may wish to turn a Standard Make C/C++ project into a
QNX C/C++ project in order to take advantage of the QNX
recursive makefile hierarchy (a project with a QNX nature
causes the IDE to use the QNX make tools and
structure when building that project).
The IDE lets you convert many projects at once, provided
you're converting all those projects into projects of the
same type.
|
If you wish to convert a QNX project back into a Standard
Make C/C++ project, you can use the Convert C/C++ Projects
wizard. From the main menu, select
File-->New-->Other....
Expand C, then
select Convert to a C or C++ Project. |
To convert a non-QNX project to a QNX Project:
- From the menu, select File-->New-->Other....
- Expand QNX.
- Select Convert to a QNX
Project.
- Click Next. The Convert C/C++ Projects wizard appears.
- Select the project(s) you want to convert in the
Candidates for conversion field.
- Specify the language (C or C++).
- Specify the type of project (application or library).
- Click Finish. Your converted project appears in
the C/C++ Projects view and the Navigator view.
|
You now have a project with a QNX nature, but you'll need to
make further adjustments (e.g. specify a target platform)
via the Properties dialog if you want it to be a working QNX
Project. |
The conversion wizard gave your Standard Make project a QNX
nature; you now need to use the Properties dialog
to fully convert your project to a working QNX Project.
To bring up the Properties dialog of a project:
- In the C/C++ Projects or Navigator view, right-click your project.
- Select Properties from the context menu. The
Properties dialog appears:
- In the left pane, select QNX C/C++ Project.
- Specify the properties you want using the available tabs:
- Options
- See the section "Tabs in the New C/C++ Project wizard" above.
- Build Variants
- See the section "Tabs in the New C/C++ Project wizard" above.
- General
- In the Installation directory field, you can
specify the destination directory (e.g. bin)
for the output binary you're building. (For more
information, see the Conventions for Makefiles and Directories appendix in the
Programmer's Guide.)
In the Target base name field, you can specify your
binary's base name, i.e. the name without any prefixes or
suffixes. By default, the IDE uses your project name as the
executable's base name. For example, if your project is
called "Test_1," then a debug version of your
executable would be called "Test_1_g" by default.
In the Use file name, enter the name of the file containing the usage message for your
executable. (For more on usage messages, see the entry for
usemsg in the Utilities Reference.
- Compiler
- See the section Compiler tab below.
- Linker
- See the section Linker tab below.
- Make Builder
- See the section "Tabs in the New C/C++ Project wizard" above.
- Error Parsers
- See the section "Tabs in the New C/C++ Project wizard" above.
- When you've finished specifying the options you want,
click Apply, then OK. The conversion
process is complete.
The Compiler tab changes depending on which of the three
categories you select:
- General options
- Extra source paths
- Extra include paths
- Compiler type
- If you've selected General options, the first
item you specify is the type of compiler. Currently, the
choices are:
- GCC 2.95.3
- GCC 3.3.5
- Intel (icc), if you've installed the Intel ICC for QNX product
- Output options
- Here you can specify the warning level (0 to 9), i.e.
the threshold level of warning messages that the compiler
outputs. You can also choose to have the preprocessor output
intermediate code to a file; the IDE will name the output file
your_source_file.i (C) or
your_source_file.ii (C++), using the name of your
source file as the base name.
- Code generation
- For the Optimization level, you can specify
four levels: from 0 (no optimization) to 3 (most
optimization). In the Stack size field, you can
specify the stack size, in bytes or kilobytes.
- Definitions field
- Here you can specify the list of compiler defines to be
passed to the compiler on the command line in the form
-D name[=value],
but you don't have to bother with the -D part;
the IDE adds it automatically.
- Other options field
- Here you can specify any other command-line options that
aren't already covered in the Compiler tab. For more
information on the compiler's command-line options, see
qcc in the Utilities Reference.
- Extra source paths
- If you want to specify source locations other than your
project's root directory, select this category. Then click
the appropriate button to specify the location:
- Project... -- You can add source from
another project in your current workspace. Note that the IDE
uses relocatable notation, so even if other team members
have different workspace locations, they can all work
successfully without having to make any additional project
adjustments.
- QNX target... -- You can add source from
anywhere in or below your
${QNX_TARGET} directory on your host.
- Disk... -- You can choose to add source
from anywhere in your host's filesystem.
- Extra include paths
- You can specify a list of directories where the compiler
should look for include files. The options here are the same
as for Extra source paths, except that here you can
change the order of directories in the list, which can be
important if you happen to have more than one header file
with the same name.
The Linker tab changes depending on which of the four
categories you select:
- General options
- Extra library paths
- Extra libs
- Post-build actions
- Export symbol options
- This field lets you define the level of final stripping
of your binary, ranging from exporting all symbols to
removing just the debugger symbols to removing them all.
- Generate map file
- If you set this option on, the IDE will print a link map
to the build console.
- Build goal name
- Specify the output filename for an application or
library project. Note that the name you enter in this field
will force the library's shared-object name to match.
By default, a generated application will have the same name
as the project it's built from. A library will have prefix
of "lib" and a suffix of
".a" or ".so"
after the project name. In addition, debug variants of applications
and libraries have a suffix of "_g."
- Link against CPP library (valid for C++ projects only)
- Select the particular C++ library you want to use.
QNX Momentics currently ships with these C++ libraries:
- Default --
The standard QNX C++ library, with support for all standard C++
features (exceptions, STL, etc.).
- Dinkum with exceptions and Dinkum without
exceptions --
The Dinkum C++ library, with support for exceptions or without.
- Dinkum Abridged with exceptions and Dinkum Abridged
without exceptions --
The Dinkum Abridged C++ library, with support for exceptions or
without.
- Dinkum Embedded with exceptions and Dinkum Embedded
without exceptions --
The Dinkum Embedded C++ library, with support for exceptions or
without.
- GNU with exceptions --
The GNU G++ Standard Library, with support for exceptions.
Compiling C++ code without support for exceptions usually results in a
faster executable.
- Library shared object name
- You can use this field to override the shared-object
name used in C/C++ library projects. Note that this will
not affect the actual filename.
|
If you specify a filename in the Build goal name
field, don't use the Library shared object name field. |
- Library version
- This dropdown list lets you select a version number for
both the library's shared-object name and filename. If this
is a library that doesn't have a version number (e.g.
"platform.so"), then select
"No."
Note that you can still set the library version even if
Build goal name is specified.
- Other options field
- Here you can specify any other command-line options that
aren't already covered in the Linker tab. For more
information on the linker's options, see the entry for
ld in the Utilities Reference.
- Extra library paths
- Select this category if you want to specify locations
where the linker should look for import libraries
(.so or .a files). Then click
the appropriate button to specify the location. (These
buttons work the same as those in the Compiler tab when you
select Extra source paths.)
- Extra libraries
- Here you can add a list of libraries (.so
or .a files) to search for unsatisfied
references. For each item in this list, you can define:
- Stripped name, the base name without the
lib prefix (which ld adds
automatically) and without the suffix (.so or
.a).
- Library type (static or dynamic)
- Debug/Release mode. A "No" or
"Yes" in this field indicates whether or not
the builder will match the debug or release version of the
library with the final binary's type. For example, if you
select "Yes" and you want to link against a
debug version of the library, the IDE will append
"_g" to the library's base name.
If you select "No," then the builder passes (to
ld) this name exactly as you entered it. So, if
you wanted to use a release version of your binary and link
against a debug version of the library, you'd specify
MyLibraryName_g as the name.
|
Adding a new element to the extra library list automatically
adds the directory where this library resides to the
Extra library paths list (see above), if it's not
already there. But if you remove an item from the list, its
parent directory is not automatically removed. |
You can add a library in two ways:
- Add button -- lets you create an empty
element and define it manually
- Add from project -- lets you browse your
workspace for the library. Note that when you add a library
from your workspace, the IDE uses relocatable notation so
other members with different workspace locations can all
work successfully without having to make any project
adjustments.
- Extra object files
- This lets you link a project against any object file or
library, regardless of the filename.
|
The file-selection dialog may seem slow when adding new
files. This is because the system can't make assumptions
about naming conventions and instead must use a binary
parser to determine if a file is an object file or a
library.
Note also that the Extra object files option is
available for an individual platform only. If a project has
more than one active platform, you can't use this feature.
In that case, you can still specify extra object files using
the Advanced mode for each platform separately. |
- Post-build actions
- When you select this category and click the Add
button, you'll see a dialog that lets you select one of four
predefined post-build actions for your project:
- Copy result to other location
- Move result to other location
- Rename result
- Run other shell command
In the What field, you specify the item (e.g.
application) you want to copy or move; in the Where
field, you specify the destination. You can use the To
Workspace or To Filesystem buttons to locate
the place.
If you select Rename result, a New Name
field appears for you to enter the name. If you select
Other command, enter the shell command in the
field.
Note that you can set up more than one post-build action;
each will be processed sequentially.
The Properties dialog can appear in two different modes:
regular (default) and advanced.
To activate the advanced mode, press the Advanced
button at the bottom of the dialog.
To return to regular mode, press the Regular button.
In advanced mode, you can override various options that were
set at the project level for the particular build variant you've
selected:
- platform (the one specified or all supported platforms)
- build mode (e.g. debug, release, user-defined)
- compiler options
- linker options
For example, you can change the optimization level for a
particular C file, specify which set of import libraries to
use for a specific architecture, and so on.
During the final build, the IDE will merge the options
you've set for the project's general configuration with the
advanced options, giving priority to the advanced settings.
Use the Import wizard to bring resources into your workspace
from a filesystem, ZIP archive, or CVS repository.
To bring up the Import wizard:
|
Choose File-->Import....
Or
Right-click in the Navigator or C/C++ Projects
view, then choose Import....
|
The Import wizard
The Import wizard can import resources from several different
sources:
To import a container project and its associated C/C++ projects from
another workspace:
- In the Import wizard, choose Existing Container
Project into Workspace and click the Next button.
The IDE displays the Import Container Project From File
System panel.
Importing a container project
- Enter the full path to an existing container project directory in
the Project contents field, or click the
Browse... button to select a container project
directory using the file selector.
Click Next to continue. The IDE displays the Select
components to install panel.
Selecting container components to import
- By default, every project reference by the container project will
also be imported. To exclude certain projects, expand the project
tree and de-select projects you don't want to import.
Click Finish to import the container project and its
sub-projects.
To copy an existing project from another workspace:
- In the Import wizard, choose Existing Project into
Workspace and click the Next button.
The IDE displays the Import Project From Filesystem
panel.
Importing an existing project
- Enter the full path to an existing project directory in the
Project contents field, or click the
Browse... button to select a project directory using
the file selector.
- Click the Finish button to import the selected project
into your workspace.
Eclipse developers use this for developing IDE plug-ins and features.
Eclipse developers use this for developing IDE plug-ins and features.
To copy files and folders from your filesystem into an existing
project in your workspace:
- In the Import wizard, choose File System and
click the Next button.
The IDE displays the File system panel.
Importing code from the filesystem
- Enter the full path to the code in the From directory
field, or click the Browse... button to select a
source directory.
- Use the Filter Types..., Select All and
Deselect All buttons to control which files will be
imported.
Click a directory on the left panel to see a list of files in the
right panel.
The Select Types dialog lets you filter imported files by
selecting one or more extensions.
- Enter the name of a project or folder in the Into folder
field, or click the Browse... button to select one.
|
This project or folder must already exist before you bring up the
Import wizard.
|
Browsing for a project or folder
- To overwrite existing files, check the Overwrite existing
resources without warning box.
- To import only the selected folders, check Create selected
folders only.
To import the selected folder and all sub folders, check
Create complete folder structure.
- Click Finish to import the selected resources.
The GCC Coverage Data from Project option in the
Import wizard lets you import code coverage data from
applications that have been run outside of the IDE.
For example, in a self-hosted build environment, if you run a code
coverage enabled program from the command-line, it will write code
coverage data into a programname.da file in
the same directory as the program's code.
To import code coverage data:
- In the Import wizard, choose GCC Coverage Data from
Project and click the Next button.
The IDE displays the GCC Coverage Import panel.
Importing GCC coverage data
- Enter a code coverage session name in the Session name
field.
- Enter a project name in the Project field, or click the
Browse... button to select a project.
- Click Next to continue.
The IDE displays the next panel.
Referenced projects and comments
- To include code coverage data from referenced projects, select
them in the Referenced projects to include coverage data
from list.
- To include any comments with the new code coverage session (such
as details about the data you're importing), enter them in the
Comments for this coverage session field.
- Click Finish to import the code coverage data as a new
session in the Code Coverage Sessions view.
To copy a Board Support Package (BSP) into your workspace:
- In the Import wizard, choose QNX Board Support
Package and click the Next button.
The IDE displays the Import QNX BSP panel.
Importing a BSP
- Select an installed BSP from the Known Packages list.
You can also enter the full path to a BSP archive
(.zip file) in the Filename field, or
click the Select Package... button to browse to a
BSP archive.
Click Next to continue.
The IDE displays the Select Source Projects panel.
Selecting source projects from a BSP archive
- All of the projects in the BSP archive are imported by default.
Uncheck any projects you don't need to import. Click
Next to continue.
The IDE displays the Select Working Set panel.
Selecting a working set from a BSP archive
- To change the working set name for the imported projects, enter a
new working set name in the Working Set Name field, or
select one from the drop-down list.
To change the project name prefix, enter a new prefix in the
Project Name Prefix field. This will be prepended to the
name of each project imported from the BSP archive.
To change the destination directory for the projects, enter a new
path in the Directory for Projects field, or click the
Browse... button to select one. The default is your
IDE workspace.
Click Finish to import the BSP projects.
The IDE imports the selected projects from the BSP archive and
displays the Build Projects dialog.
Building BSP projects
- Click Yes to build all of the BSP projects that were just
imported. Click No to return to the IDE.
The IDE can import the .build files used by
mkifs into an existing System Builder project.
To import a mkifs .build file:
- In the Import wizard, choose QNX mkifs Buildfile
and click the Next button.
The IDE displays the Import mkifs Buildfile panel.
Importing a mkifs .build file
- Enter the full path to a mkifs .build
file in the Select the file to import field, or click the
Browse... button to select one.
- Click the Browse... button beside Select the
destination project to select a destination for this import.
The IDE displays the Select System Builder Project
dialog.
Selecting a destination System Builder project
- Select one or more project, then click OK.
The IDE imports the selected .build file's System
Builder configuration.
To copy a QNX Source Package into your workspace:
- In the Import wizard, choose QNX Source
Package and click the Next button.
The IDE displays the Import QNX Source Package panel.
Importing a QNX Source Package
- Select an installed source package from the Known
Packages list.
You can also enter the full path to a source package
(.zip file) in the Filename field, or
click the Select Package... button to browse to a
source package.
Click Next to continue.
The IDE displays the Select Source Projects panel.
Selecting source projects from a source package
- All of the projects in the source package are imported by default.
Uncheck any projects you don't need to import. Click
Next to continue.
The IDE displays the Select Working Set panel.
Selecting a working set from a BSP archive
- To change the working set name for the imported projects, enter a
new working set name in the Working Set Name field, or
select one from the drop-down list.
To change the project name prefix, enter a new prefix in the
Project Name Prefix field. This will be prepended to the
name of each project imported from the source package.
To change the destination directory for the projects, enter a new
path in the Directory for Projects field, or click the
Browse... button to select one. The default is your
IDE workspace.
Click Finish to import the projects.
The IDE imports the selected projects from the source package and
displays the Build Projects dialog.
Building package projects
- Click Yes to build all of the projects that were just
imported. Click No to return to the IDE.
Team project sets are a convenient way of distributing a collection of
projects stored in a CVS server among members of your development
team. Create them with the Export wizard.
To import a team project set and the projects it references:
- In the Import wizard, choose Team Project Set
and click the Next button.
The IDE displays the Import a Team Project Set panel.
Importing a Team Project Set
- To create a working set for the imported projects, check the
Create a working set containing the imported projects
box, and enter a name for the working set in the Working Set
Name field.
Click Finish to import the projects from the CVS
repository.
To copy files and folders from a ZIP archive into an existing
project in your workspace:
- In the Import wizard, choose Zip File and
click the Next button.
The IDE displays the Zip File panel.
Importing code from a ZIP archive
- Enter the full path to the ZIP archive in the From zip file
field, or click the Browse... button to select a
ZIP archive.
- Use the Filter Types..., Select All and
Deselect All buttons to control which files will be
imported.
Click a directory on the left panel to see a list of files in the
right panel.
The Select Types dialog lets you filter imported files by
selecting one or more extensions.
- Enter the name of a project or folder in the Into folder
field, or click the Browse... button to select one.
|
This project or folder must already exist before you bring up the
Import wizard.
|
Browsing for a project or folder
- To overwrite existing files, check the Overwrite existing
resources without warning box.
- To import only the selected folders, check Create selected
folders only.
To import the selected folder and all sub folders, check
Create complete folder structure.
- Click Finish to import the selected resources.
![[Previous]](prev.gif)
![[Contents]](contents.gif)
![[Index]](keyword_index.gif)
![[Next]](next.gif)
